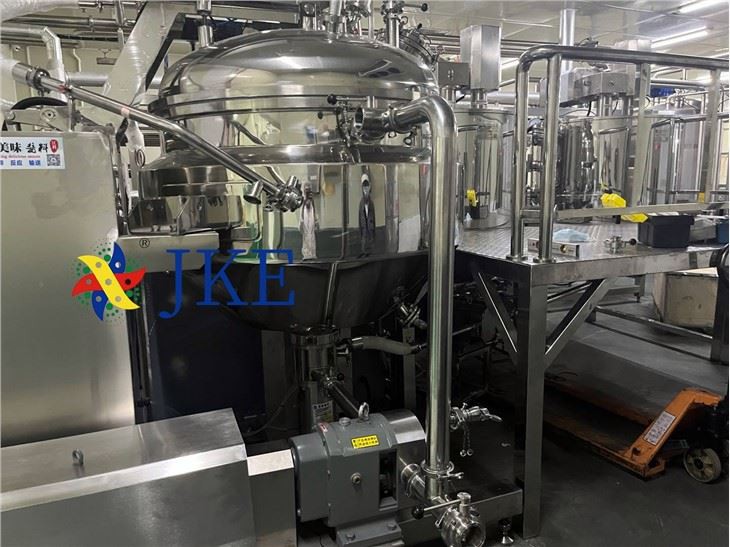

Mayonnaise Sauce Process Line
video
Mayonnaise Sauce Process Line

Mayonnaise Sauce Process Line

The mayonnaise making machine introduces foreign advanced technology and is designed according to the manufacturing process of mayonnaise, salad dressing and other products. The unit is composed of pretreatment water tank, vacuum emulsion mixing main pot, vacuum pump, hydraulic system, discharge system, electrical control system, PLC touch screen, working platform, etc. The unit has the characteristics of simple operation, stable performance, good homogenization performance, high production efficiency, convenient cleaning, reasonable structure, small floor area and high degree of automation.

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Among the emulsifying machine series products developed and manufactured by Wuxi Jiangke products, the equipment with different models and specifications has the same angular speed and cutting rate, which is very convenient for expanding production and conforms to cip/sip cleaning specifications, suitable for food and pharmaceutical production. It is widely used in skin care products, bath milk, anti cough cream, and many cream products need to use emulsifying machine. Sauce, fruit juice, etc. in food enterprises. Emulsifying machines are used in creams, petrochemical equipment, coatings, paints, printing inks, etc. in the pharmaceutical industry. The general vacuum pump emulsifying machine is composed of a slow speed mixing system, a rapid homogenization mixing system, a heating / cooling system, a top cover raising system software, a feeding and discharging system software, and an full automatic control system. At this stage, the domestic emulsification equipment is becoming more and more intelligent, which is more in line with the new production standards of the pharmaceutical industry and other industries.

vacuum homogenizer mixer




mayonnaise making machine

Specification

MODEL
Batch capacity /H
Capacity(L/H)
Power /KW
Size(mm)
Remarks
JPS-5
2-4
15-25
5
800*900*900
Laboratory Machine
JPS-10
2-8
15-50
6.5
850*900*900
Small test Machine
JPS-50
10-40
40-150
15.3
1200*1250*1850
Pilot Machine
JPS-80
20-50
80-200
15.3
1200*1250*1850
Pilot Machine
JPS-150
30-120
120-480
27
1500*1750*3550
Production System
JPS-250
40-200
160-750
31.2
1500*1750*3550
Production System
JPS-650
40-500
200-2000
41
2000*2400*4500
Production System
JPS-1300
60-1000
300-3000
52
2300*2400*4900
Production System

Product Description

mayonnaise making machine

homogenizer mixer
