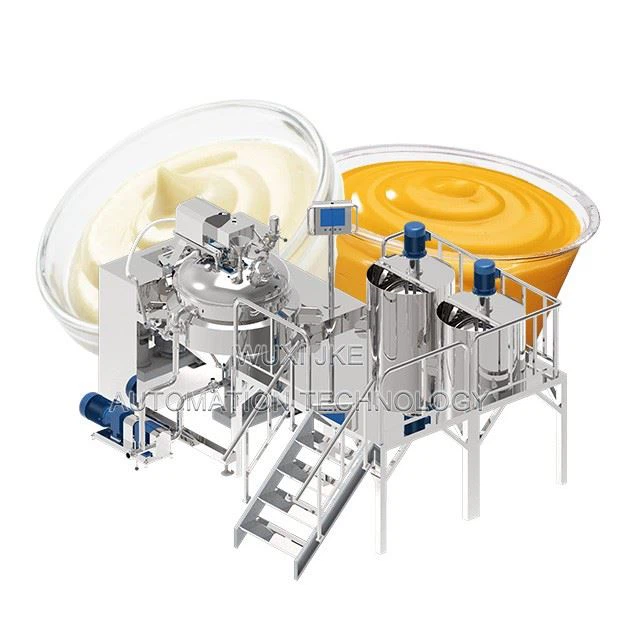

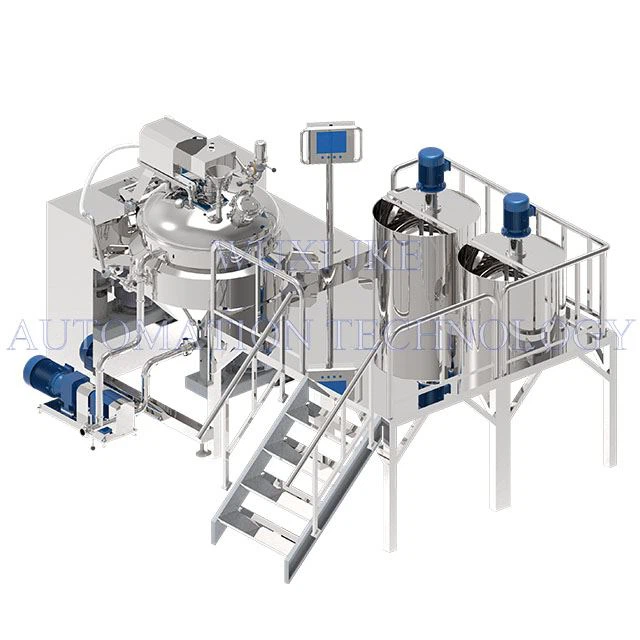

Mayonnaise Production Lines
video
Mayonnaise Production Lines

Mayonnaise Production Lines

Food Vacuum Emulsifying Mixer introduces foreign advanced technology and is designed according to the manufacturing process of mayonnaise, salad dressing and other products. The unit is composed of pretreatment water tank, vacuum emulsion mixing main pot, vacuum pump, hydraulic system, discharge system, electrical control system, PLC touch screen, working platform, etc. The unit has the characteristics of simple operation, stable performance, good homogenization performance, high production efficiency, convenient cleaning, reasonable structure, small floor area and high degree of automation.

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Vacuum emulsification refers to the efficient, rapid and uniform distribution of one phase or multiple phases to another phase by using a high shear emulsifier under vacuum. Generally, each phase (such as oil phase and water phase) is incompatible with each other. It uses the strong dynamic energy brought by machinery to make the material bear hundreds of thousands of hydraulic shear, centrifugal extrusion, impact tear and Trent flow per minute in the narrow gap between stator and rotor, Thus, the immiscible phase can be dispersed and emulsified instantly and evenly under the combined action of the corresponding mature process and the appropriate amount of addition. After high-frequency cycling, the bubble free and delicate product is finally obtained.

vacuum homogenizer mixer



Specification

MODEL
Batch capacity /H
Capacity(L/H)
Power /KW
Size(mm)
Remarks
JPS-5
2-4
15-25
5
800*900*900
Laboratory Machine
JPS-10
2-8
15-50
6.5
850*900*900
Small test Machine
JPS-50
10-40
40-150
15.3
1200*1250*1850
Pilot Machine
JPS-80
20-50
80-200
15.3
1200*1250*1850
Pilot Machine
JPS-150
30-120
120-480
27
1500*1750*3550
Production System
JPS-250
40-200
160-750
31.2
1500*1750*3550
Production System
JPS-650
40-500
200-2000
41
2000*2400*4500
Production System
JPS-1300
60-1000
300-3000
52
2300*2400*4900
Production System

Product Description

mayonnaise making machine

homogenizer mixer
