Mayonnaise Emulsification Machine
video
Mayonnaise Emulsification Machine

Mayonnaise Emulsification Machine

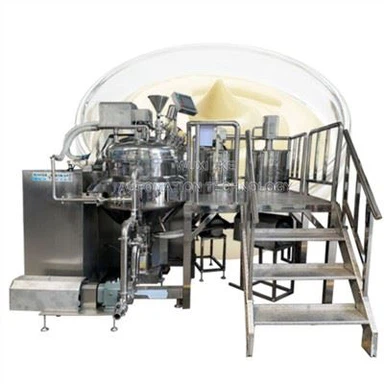

Sauce mayonnaise making mixer introduces foreign advanced technology and is designed according to the manufacturing process of mayonnaise, salad dressing and other products. The unit is composed of pretreatment water tank, oil tank,vacuum emulsion mixing main pot, vacuum pump, hydraulic system, discharge system, electrical control system, PLC touch screen, working platform, etc. The unit has the characteristics of simple operation, stable performance, good homogenization performance, high production efficiency, convenient cleaning, reasonable structure, small floor area and high degree of automation.

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

High shear emulsification machine is a kind of equipment that can efficiently, quickly and uniformly enter one or more phases into another incompatible continuous phase. The high shear emulsification machine manufactured by Guangzhou Jiete Machinery integrates the functions of mixing, dispersion, thinning, homogenization and emulsification, and is used in the emulsification and homogenization production processes in various industries such as food, pharmacy, cosmetics, chemical industry, mining, paper making, water treatment and fine chemical industry.

The high shear emulsion machine is suitable for liquid liquid or liquid-solid media, which are usually installed on the kettle body or mobile or fixed supports, and used together with open containers. High shear emulsification machine is generally produced intermittently. Jeter can design the handling capacity of each batch of emulsification machine according to the output requirements of customers.

Customized options of high shear emulsification machine include the length of the machine, the shape of the emulsification head, whether the machine has explosion-proof performance, and the combination of customized high shear emulsification machine and various agitators, which can meet various process requirements of different industries.

The high shear emulsification machine is simple to assemble and disassemble, which can meet the cleaning needs of different occasions. The particle size distribution range of the treated materials is narrow and the uniformity is good, ensuring that the materials pass 100% dispersion emulsification without dead corners. The emulsifying machine has certain self suction and low lift conveying functions, low noise, stable operation, low energy consumption, suitable for industrial continuous production, and high production efficiency.


vacuum homogenizer mixer




Specification

MODEL
Batch capacity /H
Capacity(L/H)
Power /KW
Size(mm)
Remarks
JPS-5
2-4
15-25
5
800*900*900
Laboratory Machine
JPS-10
2-8
15-50
6.5
850*900*900
Small test Machine
JPS-50
10-40
40-150
15.3
1200*1250*1850
Pilot Machine
JPS-80
20-50
80-200
15.3
1200*1250*1850
Pilot Machine
JPS-150
30-120
120-480
27
1500*1750*3550
Production System
JPS-250
40-200
160-750
31.2
1500*1750*3550
Production System
JPS-650
40-500
200-2000
41
2000*2400*4500
Production System
JPS-1300
60-1000
300-3000
52
2300*2400*4900
Production System

Product Description

mayonnaise making machine

homogenizer mixer
