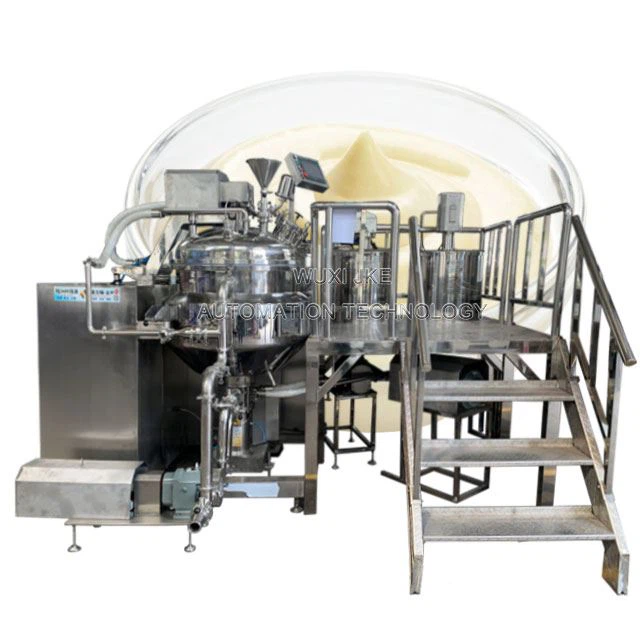

Sauce Mayonnaise Making Mixer
video
Sauce Mayonnaise Making Mixer

Sauce Mayonnaise Making Mixer

Vacuum Homogenizing Mixer and Emulsifier introduces foreign advanced technology and is designed according to the manufacturing process of mayonnaise, salad dressing and other products. The unit is composed of pretreatment water tank, oil tank,vacuum emulsion mixing main pot, vacuum pump, hydraulic system, discharge system, electrical control system, PLC touch screen, working platform, etc. The unit has the characteristics of simple operation, stable performance, good homogenization performance, high production efficiency, convenient cleaning, reasonable structure, small floor area and high degree of automation.

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

The features of Sauce Mayonnaise Making Machine:

-The all-round wall scraping mixing adopts the frequency converter for speed adjustment , so that high

quality products of different processes according to customer requirements.

-The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve manyindis

soluble materials such as AES , AESA , LSA , etc. during the liquid detergent production process so as to save energy consumpion

and shorten production period.

-The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mittor polishing , which

fully conforms to GMP requirements.

-According to customer requirement , the tank can heat and cool materials. The heating way including steam heating and electric

heating. Easy to discharge , bottom direct discharge or by transfer pump.

vacuum homogenizer mixer




Specification

MODEL
Batch capacity /H
Capacity(L/H)
Power /KW
Size(mm)
Remarks
JPS-5
2-4
15-25
5
800*900*900
Laboratory Machine
JPS-10
2-8
15-50
6.5
850*900*900
Small test Machine
JPS-50
10-40
40-150
15.3
1200*1250*1850
Pilot Machine
JPS-80
20-50
80-200
15.3
1200*1250*1850
Pilot Machine
JPS-150
30-120
120-480
27
1500*1750*3550
Production System
JPS-250
40-200
160-750
31.2
1500*1750*3550
Production System
JPS-650
40-500
200-2000
41
2000*2400*4500
Production System
JPS-1300
60-1000
300-3000
52
2300*2400*4900
Production System

Product Description

mayonnaise making machine

homogenizer mixer
