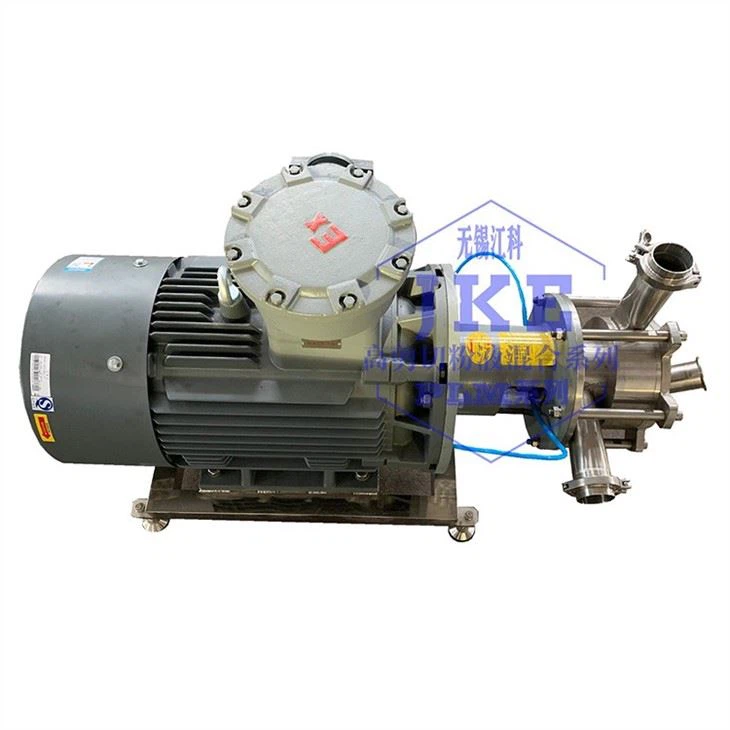

Powder And Liquid Pump

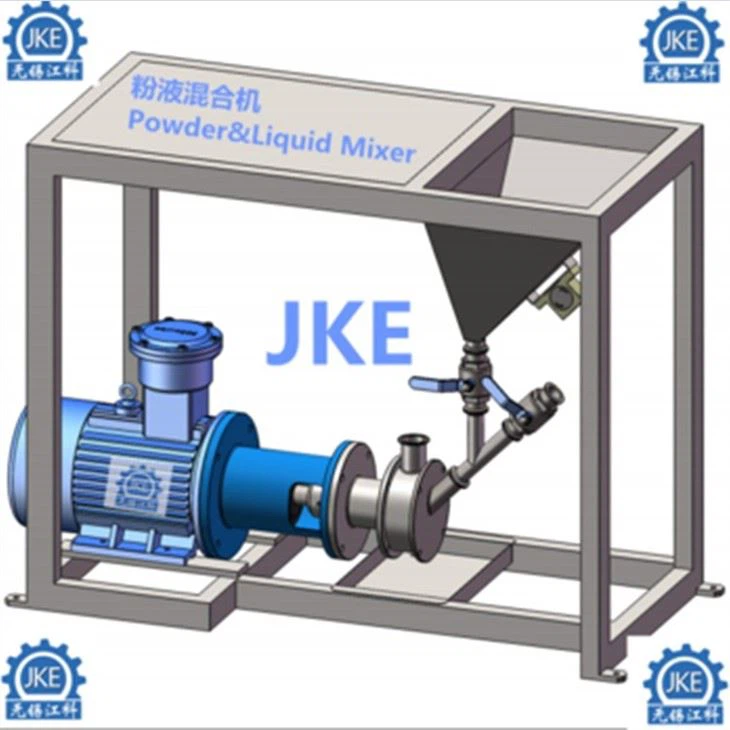

The inline powder liquid mixer is equipped with a specially designed screw rotor, a mixing head, a dispersing head, a liquid inlet and a powder inlet. The working principle is to make use of the high-speed rotation of the stator and rotor to produce the feed, and to introduce the powder into the fast flowing liquid continuously and evenly, and then to disperse and mix the powder through the shear cavity. Because the liquid and powder are not in contact with each other before mixing, only in the moment before mixing, the powder is introduced into the liquid flow as dispersion, so the probability of agglomeration between the powder is less.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
The simple mixing method will bring a series of problems when dealing with some special materials. Such as caking, air entry, dust flying and solvent leakage. These are all things we don't want to see. However, this traditional processing method can not guarantee the quality consistency among batches. Especially when handling large quantities of materials or handling materials at high altitude, this situation will be aggravated. Therefore, Wuxi Jiangke now provides you with a more modern treatment process, namely continuous process. This process can not only effectively avoid the problems caused by the traditional mixing process, but also reduce the cost of personnel, equipment cleaning and energy use, and can continuously add powder and liquid for treatment.
Model | Liquid flux | Powder capacity | Power | Powder input/ liquid input/ output size DN |
PLM-2 | 500 | 100 | 2.2 | 38/25/25 |
PLM-4 | 700 | 180 | 4 | 38/50/40 |
PLM-5 | 1500 | 350 | 5.5 | 38/50/50 |
PLM-11 | 4500 | 1000 | 11 | 50/50/50 |
PLM-15 | 6000 | 1500 | 15 | 50/50/50 |
PLM-18 | 7000 | 2000 | 18.5 | 80/65/65 |
PLM-22 | 8000 | 2500 | 22 | 80/65/65 |
PLM-37 | 10000 | 4000 | 37 | 100/80/80 |

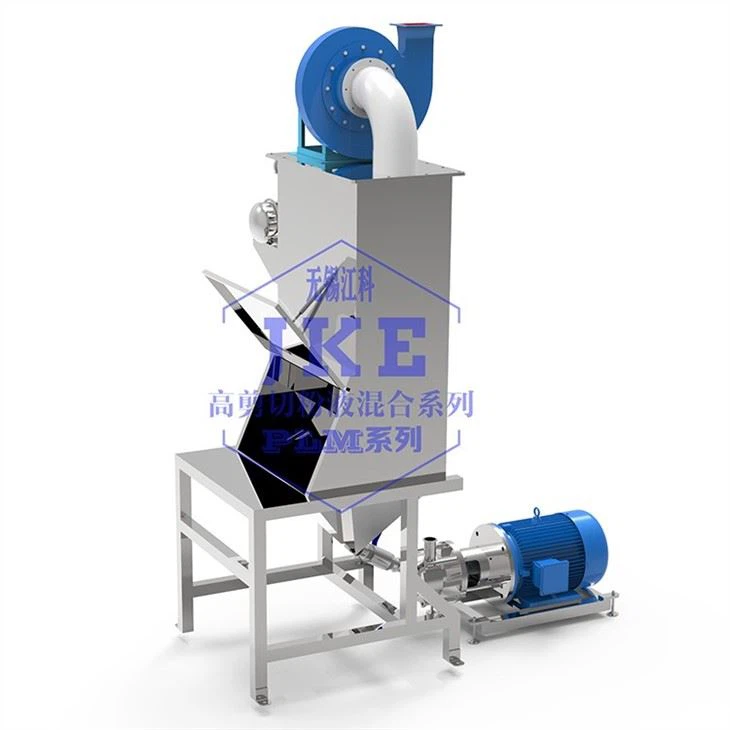

The solid-liquid mixer developed and manufactured by Jiangke can ensure that solid and liquid materials can achieve good mixing, homogenization and dispersion effect only once when passing through the machine, and there is no caking and dust problem.
The advantages of PLM powder liquid dispersion mixer are as follows:
1. High efficiency suction system, high throughput
2. Simple and stable design, compact production method, without additional equipment
3. Close the system to prevent dust and solvent emissions
4. Wetting the particles to prevent the formation of agglomerations
5. Unpacking and unloading, no loss of raw materials, greatly shortening the production time
6. Reduce the addition of raw materials through more effective crushing of raw materials
