Lifting Emulsifying Machine
Emulsifying machine is an important equipment in the production and processing of products in many different industries, because many industries need to cut, disperse and collide the raw materials of products, and the equipment that can effectively complete these works is not an emulsifying...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

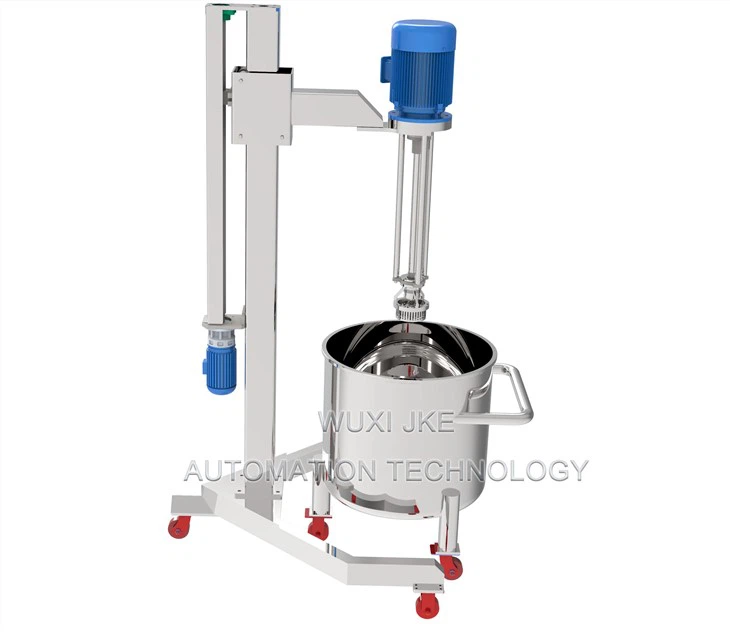

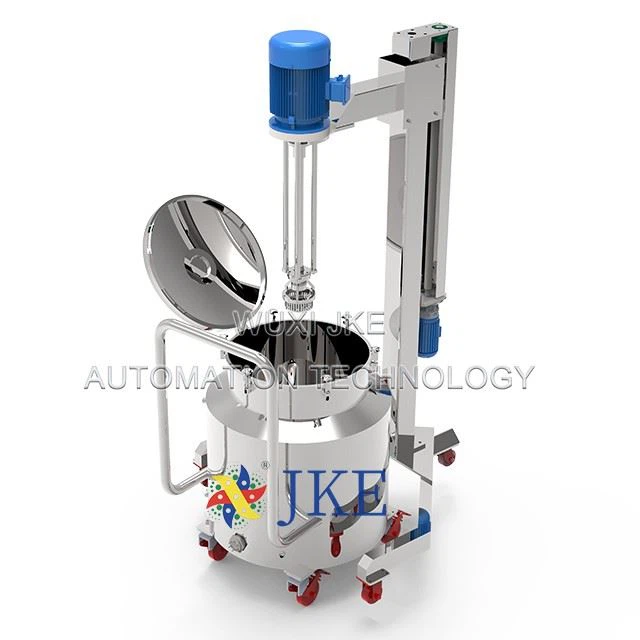

Pneumatic / manual support lifting, batch high shear emulsifying machine is an emulsifying machine fixed on various containers, or installed on pneumatic / manual support lifting, which is convenient for moving and lifting of the main machine. It can be made into a closed vacuum pumping type, which can cooperate with other kettle equipment to achieve automatic production of the system. By means of mechanical external force, the particle size of liquid-liquid and solid-liquid materials is narrowed, and one phase is uniformly distributed into another or more phases, so as to achieve the effect of refining, homogenizing, dispersing and emulsifying, thus forming a stable emulsion state. The working head is made of new bidirectional materials and refined stainless steel forgings. There are two types of installation: top and bottom, and three installation methods: vertical, offset and oblique. Under pressure application conditions, double face mechanical seal with seal self-lubricating system is adopted.
Model | HM-2 | HM-4 | HM-5 | HM-11 | HM-15 | HM-22 | HM-37 |
Power | 2.2 | 4 | 5.5 | 11 | 15 | 22 | 37 |
Speed（rpm） | 3000 | 3000 | 3000 | 3000 | 1500 | 1500 | 1500 |
Capacity | 50-100 | 100-500 | 500-800 | 800-1500 | 1500-2000 | 2000-3000 | 3000-5000 |
Working head size（mm） | 110 | 130 | 140 | 175 | 230 | 280 | 300 |
Application scope
[material viscosity]: ≤ 8000 CPS (MPAs)
[production capacity]: 30l-300l
[application field]: it is applicable to the dispersion, emulsification and homogenization of products and materials in biology, medicine, food, coating, ink, textile auxiliaries, cosmetics, lubricants, pesticides and other industries.
[applicable materials]: solid and liquid, liquid and liquid can be mixed to form solution, colloid, suspension or emulsion; If juice, soup, dairy products, tissue homogenate, cosmetics, surfactants, asphalt, emulsifiers, oilfield chemicals and other more than 1000 kinds of materials.
Applicable process
It is used for simple operation in multiple open containers, or can be made into a closed vacuum pumping type. It can independently complete the mixing, dispersion, emulsification, crushing, homogenization, reaction and other technological processes on different containers. It can do cleaning work in the intermission of each batch of material processing. The processing capacity of each batch is from 30L to 300L, which is applicable to the dispersion, homogenization, emulsification, comminution, polymerization, suspension and dissolution of pilot batches and materials
Native features
1. The whole machine is reasonable in design, simple in structure, equipped with brake casters, and flexible and convenient in movement;
2. Excellent material selection, lower noise and more stable operation ensure the high quality of the whole machine;
3. Using compressed air as lifting power, manual hydraulic cylinder for lifting, no leakage pollution, explosion-proof;
4. Suitable for small and medium-sized batch production, saving space;
5. Suitable for intermittent emulsifying machine with motor below 11kw;
