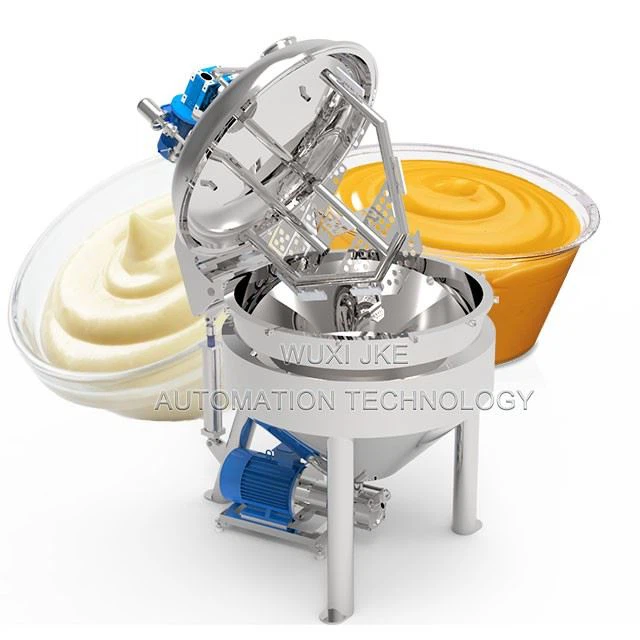

500L Mayonnaise Production Line

Vacuum emulsifying main machine:

· Slow mixer 0-40rpm with PTFE scraper

· Homogenizer 0-4500rpm (rotor and stator can adjust space)

· Heating by steam or electricity

· Pressure: chamber-0.09Mpa to 0.1Mpa, jacket 0.3Mpa for steam (standard type)

· Upper cover lifting by hydraulic

· Safety limit switch for safety operation

· Upper cover connection: Liquid feed inlet with stainless steel pipe filter, solid material inlet, vacuum inlet, compressed air inlet, breaking vacuum inlet, sight glass, CIP cleaning head, discharging port, dustproof respirator.

The lid can be lifted and lowered, the material can be poured out, and the material can also be placed at the bottom of the pot, which is convenient for cleaning. The heating of materials is realized by heating the heat conducting medium in the pot interlayer through the electric heating pipe. The heating temperature is arbitrarily set and automatically controlled. The homogeneous mixing has the function of time setting and is convenient to operate. The cooling liquid can be connected to the interlayer to cool the materials. The operation is simple and convenient. The interlayer is provided with an insulating layer. The homogenization system and the mixing system can be used separately or simultaneously. The particle size of the material can reach 200um-2um, and the emulsification, mixing, blending and dispersion can be completed in a short time. The parts in contact with materials are made of high-quality stainless steel medical 316L or 304, the inner surface is mirror polished, the vacuum mixing device is sanitary and clean, and is manufactured according to the GMP standard. It is the ideal cream production equipment for customers
