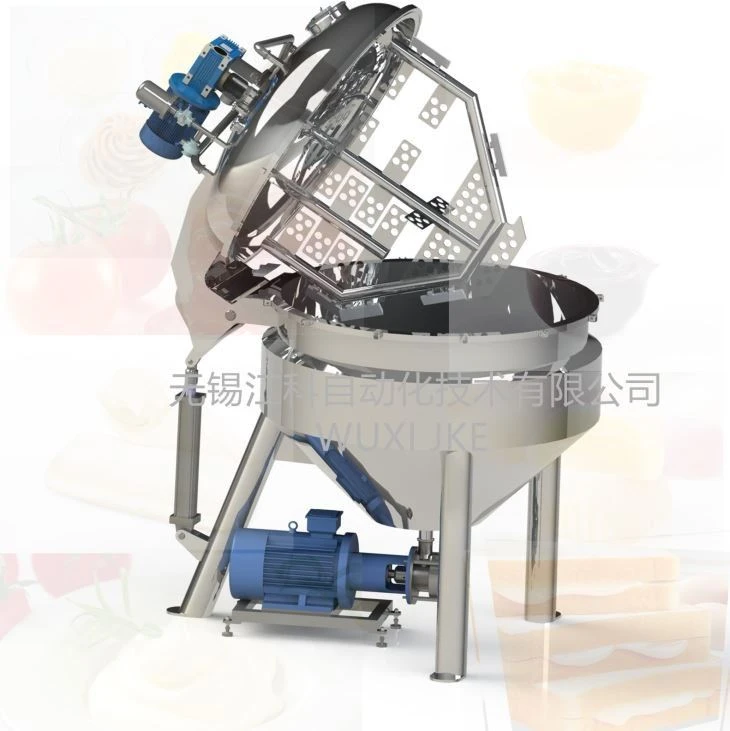

Cream Cheese Making Machine
video
Cream Cheese Making Machine

Cream Cheese Making Machine

JPS cream cheese vacuum homogenizer has advantages in many functions:variable settings of process parameters. Excellent performance in handling materials with large viscosity range. The scraper agitator supports the top-down material flow produced by the recirculation line. It also guarantees optimal thermal transfer and a uniform temperature distribution during heating and cooling. The integrated, controllable vacuum system creates conditions that are perfectly adjusted to each processing step and allows both liquid and powdery ingredients to be fed directly into the homogenizer. The entire system can be cleaned in an automatic cycle CIP.

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

Introduction

  JPS cream cheese vacuum homogenizer has advantages in many functions:variable settings of process parameters. Excellent performance in handling materials with large viscosity range. The scraper agitator supports the top-down material flow produced by the recirculation line. It also guarantees optimal thermal transfer and a uniform temperature distribution during heating and cooling. The integrated, controllable vacuum system creates conditions that are perfectly adjusted to each processing step and allows both liquid and powdery ingredients to be fed directly into the homogenizer. The entire system can be cleaned in an automatic cycle CIP.

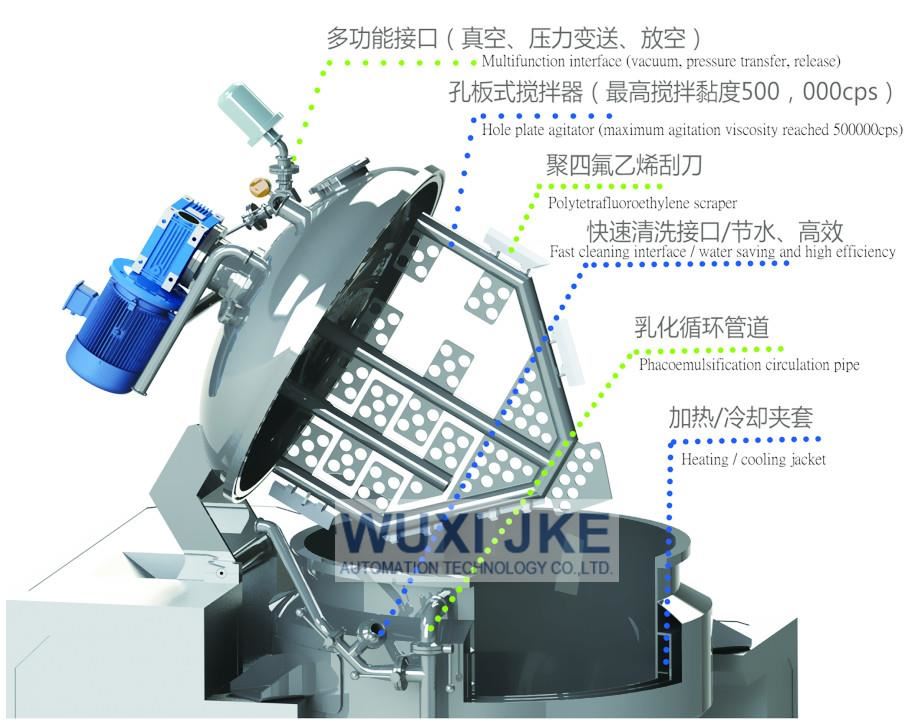

  The heart of the JPS cream cheese vacuum homogenizer is the homogenizer mounted underneath the vessel,which introduces shear energy into the products,drives the product flow and discharges the completed batch.

mayonnaise-vacuum-homogenizer-mixer29153395494

Related Video: https://youtu.be/TlrHW0qwOVg


Technical Paraments

From laboratory plant to production systems

Types of plant

JPS-5

JPS50

JPS100

JPS300

JPS500

JPS650

JPS800

JPS1000

JPS2000

Working volume

Max.volume/L

4

35

85

250

400

500

650

850

1800

Min.volume/L

1

10

10

20

30

30

30

50

100

Output parameters

Mayonnaise plant capacity, kg/h

30

150

300

900

1200

1500

2000

3000

4500

Process parameters

Stirring power/Kw

0.75

1.1

2.2

2.2

4

4

5.5

5.5

7.5

Emulsifying power/Kw

4

4

7.5

15

18.5

22

22

37

45

Emulsifying speed/RPM

6000

4500

4500

4500

4500

4500

4500

4500

4500

Dimensions /mm

800*
800*
750

1200*

1450*

1800

1350*

1500*

1800

1700*

4500*

2500

2400*

4500*

3200

2400*

4500*

3200

2700*

5000*

3600

2700*

5000*

3800

3500*

6000*

4350

mayonnaise-manufacturing-machine59410290241

202002291043092841723

Characteristic and application

Characteristic

1. Soluble (or miscible materials) solid and liquid in accelerated dissolution

2. Immiscible solid-liquid phase suspensions in superfine mixing dispersion

3. Immiscible liquid-liquid phase solution in inclusive micro-emulsion

4. High-viscosity material powder-liquid in overall-mixing and superfine dispersion

5. Nanomaterial aggregates in strong deploymerization and superfine dispersion

Certificate services: we can provide related certificates to customers freely according to the request of customers. Like Form A, Form E, Certificate of origin, CE, Free fumigation certificate etc.

The customer can contact with seller by phone, e-mail, Skype etc, we promise will keep our mobile is open full days (24 hours).

Packaging Details

Standard Export Plywood Case/ Steel Case, Suitable Size for Container Transportation
